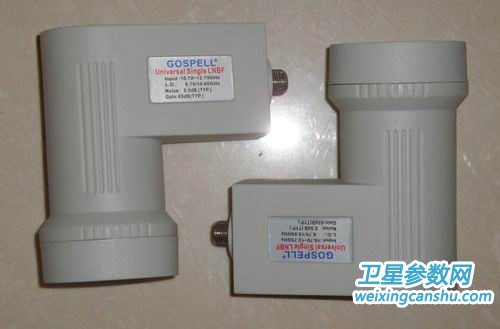

9750-10600双本振KU高频头
9750/10600双本振高频头产品编号：
9750/10600双本振高频头详细说明：
此高频头为9750/10600双本振单输出高频头，做工精细，小巧玲珑，
每个包装2只，每箱100只，适合出口，量大优惠。
9750/10600双本振高频头技术参数：
Property：
* Input Frequency Low:10.7 - 11.7GHz & High:11.7 - 12.75GHz
* LO Frequency Low:9750MHz & High:10600MHz
* Ku-Band Dual polarization and single output
* LO frequency switchable through 0/22KHz
* Polaraty switchable through 13/18V
* Direct receiver connection
specification
Image Rejection
40 dB (Min.)
F/D Ratio
0.6
CrossPol. discrimination
20dB(Min)
Input Reflector Type
Offset
Gain Flatness
3dB（Over Band ）
Noise Figure
0.4dB(TYP) 1.2dB(max)
L.O.Frequency
Low Band: 9.75GHz
High Band: 10.6GHz(or 10.75GHz)
Conversion Gain
56dB(TYP) @25℃ 51dB(min)
Input RF Frequency Range
Low Band: 10.7 - 11.7GHz
High Band: 11.7 - 12.75GHz
L.O. Stability
±1.0MHz@25℃
±3.0MHz @-40℃~ +60℃
Output Frequency Range
Low Band: 950 - 2050MHzHigh Band: 1100 - 2150MHz
L.O. Phase Noise
-50dBc(1kHz Offset)
-75dBc(10kHz Offset)
-95dBc(100kHz Offset)
Output Return Loss
8.0dB(2.3:1)
Output Power
0dB (Min.)
Polarization Selection
V : 11~14V DC
H : 16~18V DC
Output Connector
75Ω F-type female
D.C. Current Consumption
85mA(TYP) 95mA(Max)
Operating Temperature
-40 ℃to +60 ℃
