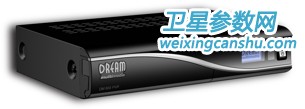

今天在梦幻官网上出现了DM800的介绍了,终于开始销售了 http://www.dream-multimedia-tv.de/english/products_dm800.php (19.04 KB) (20.04 KB) - 300 MHz MIPS Prozessor - Linux Operating System - 1 x Smartcard-Reader - MPEG2 / H.264 Hardware decoding - Tuner: DVB-S, optional: DVB-C, DVB-T - Tuner Module, Plug&Play - OLED - Display - 64 MByte Flash, 256 MByte RAM - SATA - for use either as internal HDD 2,5“ or eSATA - unlimited channel lists for TV/Radio - full automatic service scan - supports directly bouquet-lists - supports EPG (electronic program guide) - supports multiple LNB-Switching control (supports DiSEqC) - fully adaptable OSD in many languages and skin-support - S/PDIF Interface for digital bit stream out - Videotext Decoder - 10/100Mbit Ethernet Interface - 1 x Scart (RGB, FBAS oder S-Video) - DVI - 2 x USB 2.0 - V.24/RS23B 2.2 - analoge modem for Internet - extern 12V power supply DreamBox DM800 technical data DBS-Tuner mit DVB-S2: Frequency Range 950 .... 2150 MHz Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK) Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK) Video decoder: Video Compression MPEG-2 and MPEG-1 compatible, H.246 Video Formats 4:3 / 16:9 Letterbox for 4:3 TV-Device Audio decoder: Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3 Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz Output analog: Output Level L/R 0,5 Vss on 600 Ohm THD > 60 dB (1 kHz) Crosstalk < -65 dB Output digital: Output Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical, Toslink Ausgang Video: Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm Video parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard TV-Scart: Output: FBAS, RGB, S-Video Serielle Interface RS 232: Typ RS232 bidirectional Bitrate 115,2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware Ethernet: 10/100 MBit compatible interface Function: Update of Firmware Analoge modem: analoge modem for Internet connection SATA Interface: - for use either as internal HDD 2,5“ or eSATAor internal 2,5" HDD USB 2 x USB 2.0 Host LNB power and polarisation per tuner: LNB Current 500mA max.; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mA Count of active satellite position: DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor Control Power consumption: < 15W at 12V External PSU Input: 110-240V AC / 50-60Hz / 0,6A Output: 12V = / 2,0A Physical specification: Ambient Temperature +15°C...+35°C Humidity < 80% Size (W x D x H): 195 mm x 140 mm x 40 mm Weight: 1,8 kg without HDD
